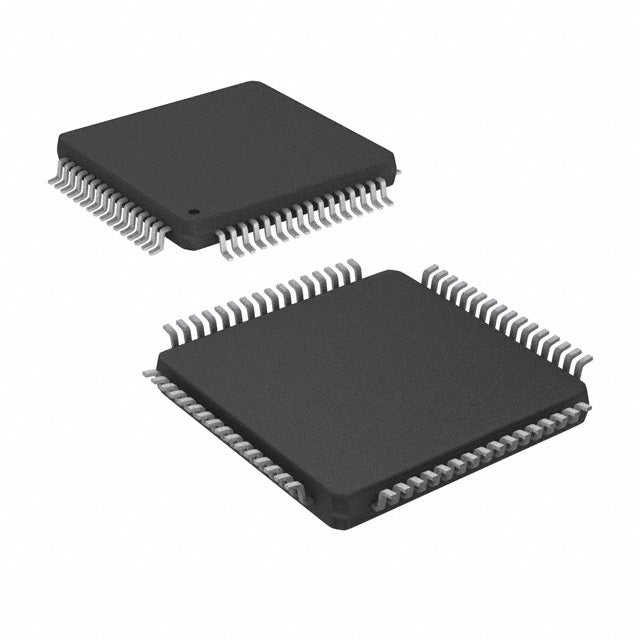

FPD87346BXAVS/NOPB Texas Instruments | LVDS Panel Timing Controller, 85MHz - AICCHIP
Product Overview: FPD87346BXAVS/NOPB Developed to manage precise visual data synchronization in advanced display systems, the FPD87346BXAVS/NOPB is a highly reliable Panel Timing Controller (TCON) manufactured by Texas Instruments (formerly National Semiconductor). Operating with a 3V to 3.6V supply, this controller natively supports Low-Voltage Differential Signaling (LVDS) for both input and output interfaces. Capable of driving up to 85MHz operating frequencies with a 5:10 input-to-output ratio, it ensures seamless high-speed data transmission for industrial monitors, medical displays, and embedded graphics panels....
Please hurry! Only 0 left in stock
10 customers are viewing this product
Couldn't load pickup availability
Description
xProduct Overview: FPD87346BXAVS/NOPB
Developed to manage precise visual data synchronization in advanced display systems, the FPD87346BXAVS/NOPB is a highly reliable Panel Timing Controller (TCON) manufactured by Texas Instruments (formerly National Semiconductor). Operating with a 3V to 3.6V supply, this controller natively supports Low-Voltage Differential Signaling (LVDS) for both input and output interfaces. Capable of driving up to 85MHz operating frequencies with a 5:10 input-to-output ratio, it ensures seamless high-speed data transmission for industrial monitors, medical displays, and embedded graphics panels. The NOPB suffix guarantees that this component is entirely lead-free and RoHS compliant. Housed in a standard 64-pin TQFP package, it provides engineers with a straightforward surface-mount integration process. AICCHIP connects global B2B procurement teams directly to authentic electronic components, ensuring reliable wholesale fulfillment from our supply chain hubs in China.
Highlighted Advantages
- High-Speed LVDS Interface: Natively handles LVDS inputs and outputs, drastically reducing electromagnetic interference (EMI) and maintaining superior signal integrity over complex routing paths.
- Optimized Display Synchronization: Drives panel timing at a maximum frequency of 85MHz, making it fully capable of supporting demanding, high-refresh-rate graphics applications.
- RoHS Compliant Footprint: Completely lead-free (NOPB), aligning with stringent modern global environmental standards for sustainable consumer and industrial electronics production.
- Stable Commercial Reliability: Thoroughly tested for stable continuous operation within a 0°C to 70°C thermal envelope, perfectly suited for standard indoor display infrastructure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Texas Instruments (National Semiconductor) |
| Part Number | FPD87346BXAVS/NOPB |
| Category | Integrated Circuits (ICs) - Clock/Timing |
| Main Purpose | Graphics Applications (Panel Timing Controller) |
| Input / Output Type | LVDS / LVDS (5:10 Ratio) |
| Frequency - Max | 85MHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount (SMT) |
| Package / Case | 64-TQFP (10x10) |
Sourcing & Wholesale Solutions
AICCHIP serves as your dedicated B2B wholesale partner, bridging the gap in the electronic component supply chain with 100% genuine inventory. We manage cross-border logistics seamlessly directly from China. Are you sourcing the FPD87346BXAVS/NOPB for an upcoming display manufacturing run? Contact our procurement team via WhatsApp for volume discounts, verified date codes (D/C), and rapid global shipping logistics.
